Color Calibration

Saturation

  • Point the color analyzer or light meter towards the screen and display a 100% white test pattern.
  • Measure the Y value (luminance) of white.
  • Display a 100% Red test pattern, and measure the Y value here as well.
  • You will notice that as you move the Color control up and down, the Y value of Red increases and decreases, but white stays the same.
  • Set the color control at the point where Red measures closest to 21% of the white reading.

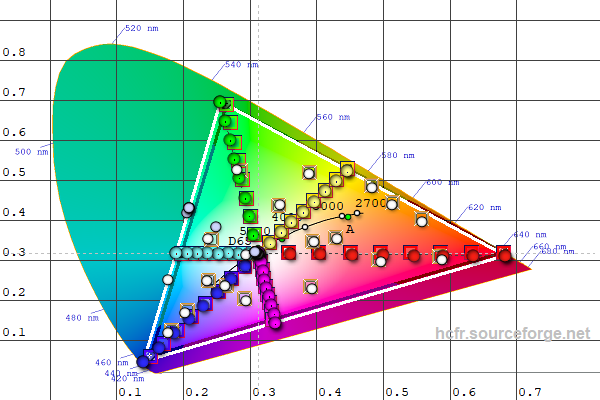

Color Checker in browser

ColorChecker Display vs Pro

Approx deviation ΔE between units mean: 0.4 max: 1.6
Device precision ΔE mean (wide gamut): 1.7 max: 2.8

ColorChecker Display (formerly ColorMunki) 400-700nm
ColorChecker Display Pro 380-730nm

DELL U2415

Contrast 73 for correct white point
WhiteLED alternative white point
x:0.308 y:0.319 RAW(uncorrected)
Gamut 98% sRGB, 73% AdobeRGB, 77% DCI-P3

https://www.panelook.com/LM240WUA-SSA1_LG%20Display_24.0_LCM_parameter_23652.html

LG OLED 65B9S

OLED 2019 Alternative White Point x: 0.308 y: 0.313 RAW(uncorrected)
LG Electronics with Dolby Laboratories (visual color matching method trying to match a Reference Grade-1 CRT)
https://pro.sony/s3/2021/01/22153606/ColourMatching_Between_OLED_and_CRT_E.pdf

Service Menu: 192 / 172 / 140

Sharpness 10 or more because conture smoothing (15)
Mode SDR
Mode ISF Dark (Warm2)
Contrast 68
Brightness 53
Saturation 60
Color LOW
L-RED 2
L-GREEN 0
L-BLUE -1
Color HIGH
H-RED 0
H-GREEN 0
H-BLUE 0
Mode HDR10 / Dolby Vision
Mode Technicolor (Warm2) / Cinema (Warm2)
Dynamic contrast Low (any high and blacks are crushed) / Standard
Contrast 77 (keep proper white point D65)
Brightness 50
Saturation 61
Color LOW
L-RED 1
L-GREEN 0
L-BLUE -4
Color HIGH
H-RED 19
H-GREEN 0
H-BLUE 24

LG-WOLED SDR rec.709-D65

Color Saturation Tint Light
RED -5 2 0
GREEN 6 15 0
BLUE -6 3 -1
AZURE 4 1 0
MAGENTA 0 6 1
YELLOW 3 0 0

LG-WOLED HDR10 bt.2020 / P3-D65

Color Saturation Tint Light
RED 2 13 -13
GREEN 7 -30 0
BLUE -7 -11 0
AZURE -2 -9 1
MAGENTA -5 -7 -2
YELLOW 3 9 2

Force HDMI input on LG OLED

highlight the picture mode in the main menu, and press 1113111 from the TV remote.

TV can play

Dolby Vision (DVHE) Profile 5 and 8 in HEVC (only in MP4/TS mux)
HDR10 VP9 (MKV), HEVC (MP4 and MKV)

Lenovo VIBE Z2 Pro

~6500K Value
RED 100
GREEN 91
BLUE 95
  • Phone can accelerate H264 4K and HEVC 1080p in 8bit
  • Phone can record H264 3840x2160x30fps 100mbit/s in 8bit

Lenovo YOGA Tab 3 Plus

~6500K Value
RED 100
GREEN 91
BLUE 85

  • Tablet can accelerate H264, HEVC, VP9 up to 4K in 8bit (only)
